Infrastructure audit and disaster recovery in 45 minutes

In January 2019, I was contacted for what seemed routine: audit the Linux infrastructure of a commercial company. What I discovered during those first hours of analysis would completely change the project’s direction. The servers were hiding secrets that not even the client knew.

Weeks later, when a power outage left the ERP and PBX offline, those secrets would become the difference between a 45-minute recovery or days of business interruption.

The scenario: when lack of documentation is the problem

The client needed to transfer maintenance of critical servers from their outgoing provider. It was a commercial company with a physical store. The initial scenario was puzzling: virtually non-existent technical documentation, unexplained configurations, and the feeling that something important was missing from the puzzle.

My mission was clear: discover what was really there, document everything, and assess whether the infrastructure could continue or needed urgent migration.

The discovery: nothing was what it seemed

When “mail server” means something completely different

The first server I analyzed supposedly managed email. But 15 minutes into the investigation, something didn’t add up. Postfix was installed, yes, but it only forwarded internal messages. There was no IMAP service, no user mailboxes. Where was the real email?

What I did find was much more interesting: a Windows XP virtual machine running on KVM with a DRBD distributed filesystem that theoretically replicated to a secondary server… which was offline.

Component	Discovered configuration
Hardware	Dell PowerEdge R210 II, Intel i3-2100, 4GB RAM
Virtualization	KVM running Windows XP for the ERP
Storage	DRBD mounted at /var/kvm-images/0
Critical problem	DRBD secondary node inoperative, no real redundancy
Operating system	Debian Wheezy (unsupported since May 2018)

I documented the exact startup command for the virtual machine. This would prove critical weeks later when the system collapsed and I had to manually start it during a crisis.

The PBX: Asterisk at the limit

The second server was more straightforward: an Asterisk PBX with MySQL managing extensions and call records. It worked, but ran on the same obsolete Debian Wheezy. The company’s entire phone infrastructure depended on software without security updates for over a year.

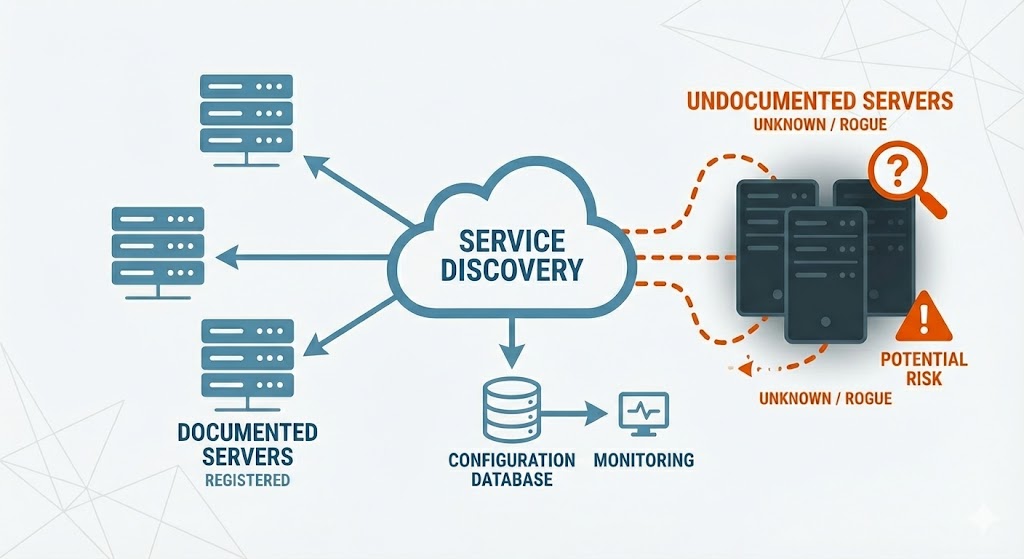

The ghost server: when you find what nobody knew existed

But the email remained a mystery. The domain’s MX records pointed to an IP, but that Linux server had no IMAP or POP3 listening. Postfix logs showed only internal forwards. Where the hell was the real email?

I spent days investigating, verifying configurations, analyzing network traffic. Finally, I confronted the outgoing provider with the facts: “This server doesn’t manage email. There has to be another server somewhere.”

This saved the project. If I had assumed the first server managed email and started a migration, I would have taken down the company’s entire email. Exhaustive investigation prevented disaster.

With all infrastructure documented, I delivered a complete report to the client with clear recommendations: migrate email to the cloud, keep Asterisk but plan its update, and above all, be aware that DRBD “high availability” was fiction.

When the crisis arrives: 45 minutes to save a company

February 21, 2019, 9:30 AM

A power outage knocked down all servers. When power returned, nothing started automatically. The ERP managing the entire store: down. The PBX handling commercial calls: silent. The company was paralyzed.

The client called me urgently. The voice on the other end conveyed real concern: “We need this working now. Every hour that passes means lost sales.”

Problem 1: The invisible ERP

The diagnosis was quick: the DRBD filesystem wasn’t mounting automatically because someone had commented out the line in /etc/fstab. Without the mounted disk, KVM couldn’t start the Windows XP virtual machine containing the Sage ERP.

Thanks to my exhaustive documentation from weeks before, I knew exactly what to do:

Problem 2: The amnesiac PBX

With the ERP up, the PBX remained. The problem here was different: Asterisk had changed its IP via DHCP. From 10.100.100.119 to 192.168.1.52. All office phones were statically configured to connect to the original IP. No phone worked.

Reconfiguring each terminal would have taken hours. The elegant solution was creating a virtual interface with the original IP:

ip addr add 10.100.100.119/24 dev eth0:0

The result: 45 minutes and two services saved

Audit: I discovered a fourth undocumented server and prevented a disastrous migration. I identified critical systems running on obsolete infrastructure with no real redundancy.

Crisis: when the power outage brought everything down, exhaustive documentation turned what could have been days of interruption into 45 minutes of surgical recovery.

Lesson: in critical infrastructure, meticulous documentation and deep knowledge aren’t luxuries, they’re the difference between an operating company and a paralyzed one.

What we learned (and what saved the day)

---
