AWS Infrastructure Security with Advanced Bastion Host, 2FA and Access Auditing

Organizations operating infrastructure on AWS face a critical security challenge: protecting access to sensitive internal resources such as databases, application servers and file systems, without exposing them directly to the internet or compromising the productivity of distributed teams requiring legitimate administrative access from remote locations.

Multiple organizations across different industries needed to transform their AWS network security model, eliminating direct exposure of internal servers and establishing granular access controls with complete traceability of administrative activity. As a cloud architect specialized in security, I have designed and implemented this bastion host-based security architecture with multi-factor authentication for various clients, providing role-based access control, encrypted SSH tunnels for internal services and a complete session auditing system for regulatory compliance.

The Challenge: Secure Access to Internal Infrastructure Without Public Exposure

Traditional AWS architectures often expose EC2 instances with public IPs or configure complex corporate VPNs. Both approaches present significant disadvantages:

Problems identified in the previous model:

Solution requirements:

• Single secure entry point for administrative access to private VPC.
• Mandatory multi-factor authentication for all users.
• Role-based access control with granular permissions per user group.
• Encrypted SSH tunnels for access to internal services (PostgreSQL, MySQL, RDP, SFTP).
• Complete session auditing with replay capability for compliance.
• Automated user management through centralized scripts.
• Chrooted SFTP for external users requiring file transfer.

The solution: completely redesigned AWS security architecture with high-security bastion host, 2FA authentication, role-based access segmentation and comprehensive auditing.

Solution Architecture

The implemented architecture is a Zero Trust security design for AWS that establishes a single, strongly secured entry point, completely eliminating the need for public IPs on internal servers.

Core Components

Component	Technology	Purpose
Bastion Host	Hardened EC2 + OpenSSH	Single SSH entry point to private VPC
2FA Authentication	Google Authenticator + PAM	Mandatory second factor based on TOTP
SSH Tunnels	SSH Port Forwarding	Encrypted access to internal services (DB, RDP, SFTP)
Access Control	Linux Groups + sshd_config	Granular permissions per user role
Session Auditing	sudo + sudoreplay	Recording and replay of administrative sessions
User Management	Bash Scripts + database	Automation of provisioning, deprovisioning and permissions
DNS	Route53	Name resolution for bastion host
Firewall	Security Groups + iptables	Traffic control at network and host level

Architecture Diagram

Solution 1: Bastion Host with Two-Factor Authentication

Bastion Host Implementation

The bastion host is an EC2 instance specifically configured as the single SSH entry point to the VPC, located in a public subnet with elastic IP and complete operating system hardening.

Implemented security configuration:

Google Authenticator Integration with PAM

Two-factor authentication was implemented via PAM (Pluggable Authentication Modules) integrated with Google Authenticator, requiring three authentication factors:

1. Something you have: RSA private key (stored on user’s device)
2. Something you know: RSA key passphrase (optional but recommended)
3. Something you possess: mobile device with Google Authenticator generating TOTP

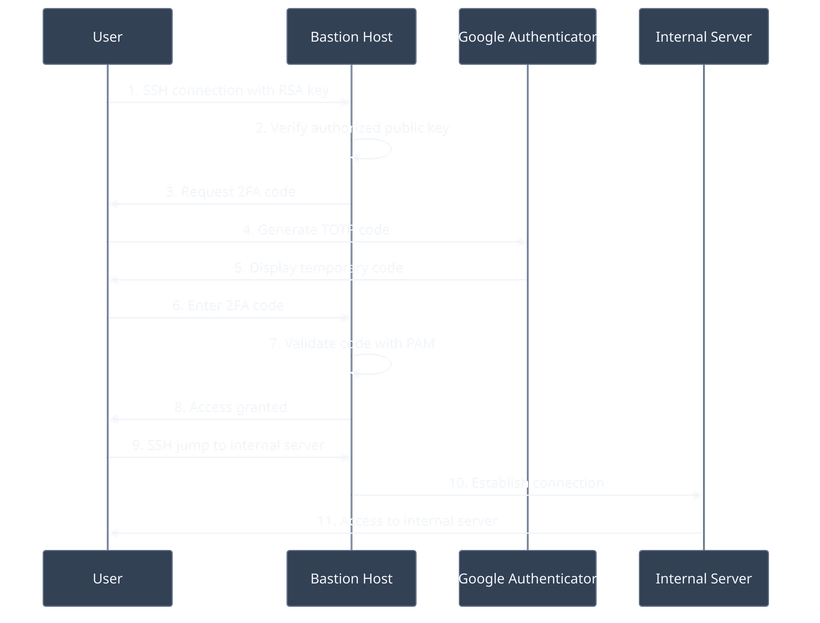

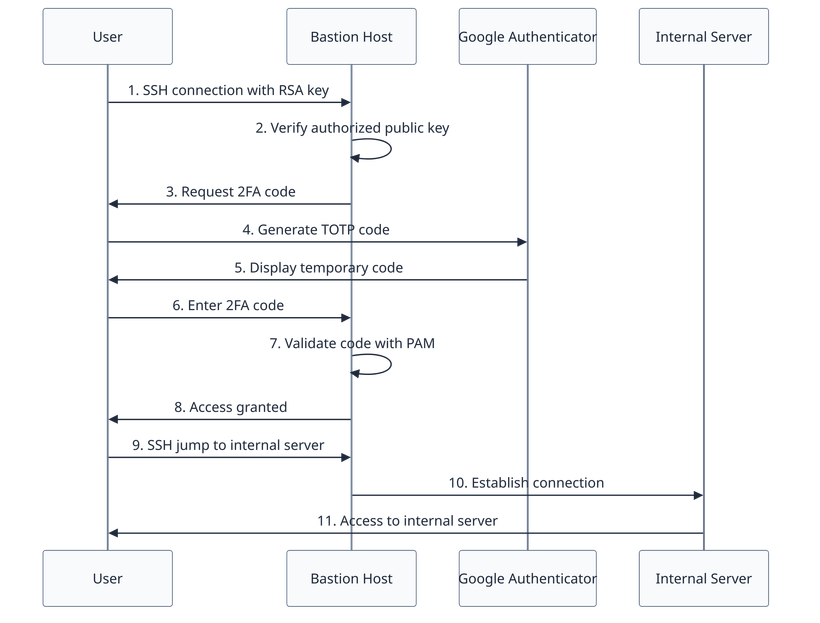

Authentication flow:

Role-Based Granular Permissions Configuration

The solution includes a Linux group-based access control system with specific permissions defined in sshd_config using Match Group directives:

Group	Permissions	Restrictions	Use Cases
admin-group	Interactive shell Unrestricted SSH jump Unlimited port forwarding No auditing	None	System administrators with full privileges
developer-group	Interactive shell SSH jump to specific servers Restricted port forwarding Full auditing	Only RDP and PostgreSQL tunnels	Developers requiring access to databases and dev servers
external-rw	No shell by default Very restricted port forwarding Full auditing	Only specific authorized services PermitTTY no	External users with read/write access to specific services
external-ro	No shell Read-only port forwarding Full auditing	Database read-only PermitTTY no	External users with read-only access
sftp-only	No shell No port forwarding Chrooted SFTP Full auditing	ChrootDirectory configured ForceCommand internal-sftp	Users only requiring file transfer

Example sshd_config configuration:

# admin-group: no restrictions
Match Group admin-group
    AllowTcpForwarding yes
    PermitOpen any
    PermitTTY yes

# developer-group: controlled access with auditing
Match Group developer-group
    AllowTcpForwarding yes
    PermitOpen internal-db-1:5432 internal-db-2:5432 internal-rdp:3389
    PermitTTY yes
    ForceCommand /usr/local/bin/audit-wrapper.sh

# external-rw: very restricted
Match Group external-rw
    AllowTcpForwarding yes
    PermitOpen service-api:8080
    PermitTTY no
    ForceCommand /usr/local/bin/audit-wrapper.sh

# sftp-only: chrooted SFTP
Match Group sftp-only
    ChrootDirectory /sftp-home/%u
    ForceCommand internal-sftp
    AllowTcpForwarding no
    PermitTunnel no
    X11Forwarding no

Solution 2: SSH Tunnels for Internal Services Access

Encrypted SSH Tunnels

SSH tunnels enable secure access to internal services without publicly exposing ports, establishing an encrypted channel between the local client and remote service through the bastion host.

Services accessible via tunnels:

SSH Tunnel Examples

Local tunnel for PostgreSQL:

# Tunnel from localhost:5432 to internal database
ssh -N -L 5432:internal-db.vpc.internal:5432 username@bastion-host

# User connects locally
psql -h localhost -p 5432 -U dbuser -d production

Tunnel for Windows RDP:

# Tunnel from localhost:3389 to internal Windows server
ssh -N -L 3389:windows-server.vpc.internal:3389 username@bastion-host

# RDP client connects to localhost:3389

Tunnel for SFTP to internal server:

# Tunnel from localhost:2022 to internal SFTP server
ssh -N -L 2022:internal-sftp.vpc.internal:22 username@bastion-host

# SFTP client connects locally
sftp -P 2022 deployuser@localhost

Automated User Documentation

The system includes automatic documentation generation customized for each user, creating README files in their home directories with:

• Specific SSH tunnel commands for their authorized services
• Connection examples with GUI clients (DBeaver, pgAdmin, Remmina)
• Accessible internal hosts based on their permission group
• 2FA setup instructions

Solution 3: Complete Administrative Session Auditing

Session Recording System

Session auditing was implemented via sudo logging integrated with sudoreplay, enabling:

• Complete session recording for all groups except admin-group
• Session replay as ASCII terminal video
• Command search executed by user and date
• Regulatory compliance (GDPR, SOC 2, ISO 27001)

Sudoers configuration for auditing:

# Configuration in /etc/sudoers.d/audit
Defaults log_output
Defaults!/usr/bin/sudoreplay !log_output
Defaults!/sbin/reboot !log_output

# Exceptions for admin-group (no auditing)
%admin-group ALL=(ALL) NOPASSWD: ALL

# Auditing for developer-group
%developer-group ALL=(ALL) ALL

# Auditing for external users
%external-rw ALL=(LIMITED) ALL

User session replay:

# List sessions for specific user
sudo sudoreplay -l user jsmith

# Replay specific session
sudo sudoreplay -d /var/log/sudo-io/00/00/01

# Search for specific command in all sessions
sudo sudoreplay -l command mysql

Log Centralization in CloudWatch

Audit logs are automatically sent to CloudWatch Logs for:

• Long-term retention (compliance)
• Centralized activity analysis
• Real-time alerts on suspicious patterns
• Automatic backup outside bastion host

Solution 4: User Management Automation

Centralized Administrative Scripts

The solution includes a set of Bash scripts that fully automate user management, eliminating error-prone manual tasks:

Script	Function	Benefit
create-new-user.sh	Creates user, assigns group, generates 2FA QR	Automated provisioning with complete configuration
delete-user.sh	Removes user and cleans configuration	Safe deprovisioning without residuals
grant-user-authorized-hosts.sh	Grants access to specific internal hosts	Granular permission control
revoke-user-authorized-hosts.sh	Revokes access to internal hosts	Immediate revocation on incidents
update-README-files.sh	Updates user documentation	Always synchronized documentation
update-skel-files.sh	Updates new user templates	Configuration standardization

User Database

Scripts operate on a simple flat-file database (users.db) that maintains:

• Active users and assigned groups
• Authorized internal hosts per user
• Creation date and last access
• 2FA status (configured/pending)

Benefits of the automated system:

Solution 5: Chrooted SFTP for External Users

Secure SFTP Implementation

For external users requiring file transfer without shell access, the solution implements chrooted SFTP, completely isolating each user to their home directory.

Chrooted SFTP configuration:

# In /etc/ssh/sshd_config
Match Group sftp-only
    ChrootDirectory /sftp-home/%u
    ForceCommand internal-sftp
    AllowTcpForwarding no
    PermitTunnel no
    X11Forwarding no
    PermitTTY no

Directory structure:

/sftp-home/
  ├── external-user-1/          # Owned by root:root, permissions 755
  │   └── uploads/              # Owned by external-user-1:sftp-only, permissions 770
  │       ├── incoming/
  │       └── outgoing/
  └── external-user-2/
      └── uploads/

Security features:

• Users cannot see content outside their directory
• No shell access (ForceCommand internal-sftp)
• No port forwarding (AllowTcpForwarding no)
• Mandatory 2FA authentication
• Complete transfer logs

Results and Business Impact

Security Improvements

Regulatory Compliance and Auditing

Operational Optimization

Production Track Record

Key Technical Achievements

Lessons Learned

What worked exceptionally well:

1. Google Authenticator with PAM: simple and reliable 2FA integration without dependencies on third-party cloud services.
2. Group-based access control: complete flexibility via Match Group directives in sshd_config without code modification.
3. Sudoreplay for auditing: ability to replay sessions as ASCII video proves invaluable for incident investigation.
4. User management automation: investment in automated scripts paid off quickly by reducing errors and operational time.
5. Auto-generated documentation: users receive personalized instructions automatically updated, reducing support tickets.

Technical challenges overcome:

1. Chrooted SFTP configuration: requires specific permissions in directory structure (root:root for ChrootDirectory) that can be counter-intuitive initially.
2. Persistent SSH tunnels: users need to maintain active tunnels, we implemented wrapper scripts to facilitate the experience.
3. SSH client compatibility: some legacy SSH clients require encryption configuration adjustments, we documented compatible configurations.
4. Voluminous audit logs: implemented automatic rotation and compression of sudoreplay logs to manage disk space.
5. Initial 2FA setup: automated QR code generation and secure delivery to users via encrypted PDF.

Conclusion

This AWS infrastructure security project with advanced bastion host represents a complete case study on how to implement Zero Trust architectures in cloud environments, eliminating unnecessary public exposure of internal resources while maintaining administrative accessibility for distributed teams. By combining mandatory multi-factor authentication, granular role-based access control, encrypted SSH tunnels and comprehensive session auditing, this robust security solution meets compliance standards without compromising productivity.

The resulting architecture establishes a reproducible security model applicable to any organization operating AWS infrastructure, private VPCs in other clouds or even on-premise datacenters. The system provides defense in depth through multiple overlapping security layers and complete traceability for regulatory compliance.

Key Takeaways for Similar Projects

1. Bastion host as single chokepoint: centralizing SSH access at a single point simplifies auditing, monitoring and security policy enforcement.
2. 2FA is not optional: multi-factor authentication must be mandatory without exceptions to protect against credential theft.
3. Granular access control from day one: implementing differentiated roles and permissions from the start avoids complex refactorings later.
4. Auditing as non-negotiable requirement: the ability to replay administrative sessions proves invaluable for incident investigation and compliance.
5. Automation to eliminate human errors: manual user and permission management is prone to critical security errors that automation completely eliminates.

---
